ON3P

All-mountain · Rocker, camber, rocker

ON3P Mango 90 2027

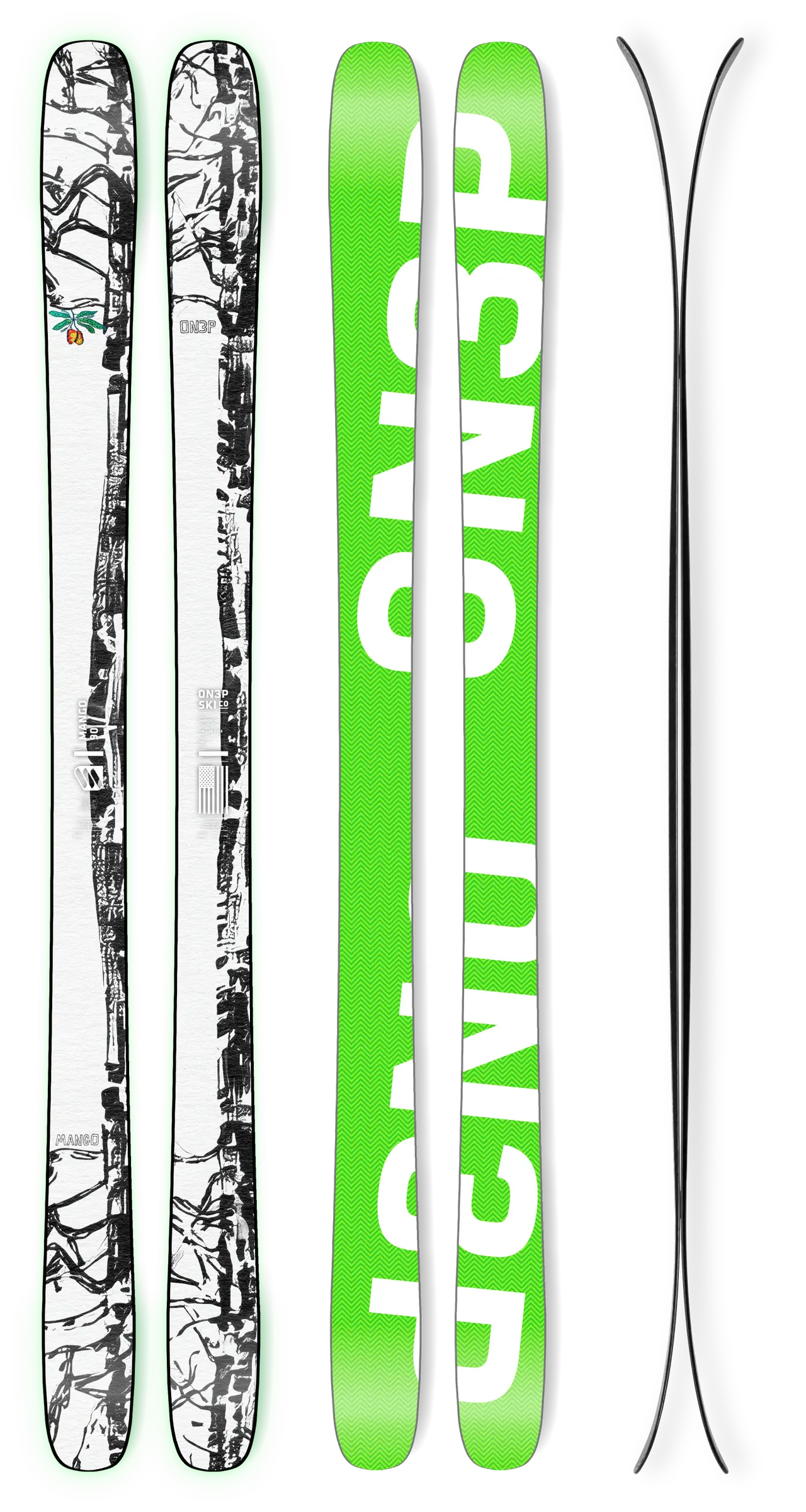

ON3P Mango 90 2027 top sheet, image © ON3P
image © ON3P
Category
All-mountain
Profile
Rocker, camber, rocker
Lengths
161 · 166 · 171 · 176 · 181 · 186 cm
Tip / waist / tail
116 / 90 / 114 mm
Radius
17.7 m at 176 cm
Weight
1,670 g per ski at 176 cm
Core
100% bamboo core
Metal
not stated
Carbon
Stringers
Sidewall
not stated
Base
1.8mm Durasurf 4001 base
Intended ability
not stated
Compare for my setupGet more help

Lengths and published dimensions

  • 161 cm

    Tip (mm)
    114.0
    Waist (mm)
    90.0
    Tail (mm)
    112.0
    Radius (m)
    16.2
    Weight (g, per ski)
    1,485

  • 166 cm

    Tip (mm)
    115.0
    Waist (mm)
    90.0
    Tail (mm)
    113.0
    Radius (m)
    16.7
    Weight (g, per ski)
    1,550

  • 171 cm

    Tip (mm)
    115.0
    Waist (mm)
    90.0
    Tail (mm)
    113.0
    Radius (m)
    17.2
    Weight (g, per ski)
    1,620

  • 176 cm

    Tip (mm)
    116.0
    Waist (mm)
    90.0
    Tail (mm)
    114.0
    Radius (m)
    17.7
    Weight (g, per ski)
    1,670

  • 181 cm

    Tip (mm)
    117.0
    Waist (mm)
    90.0
    Tail (mm)
    115.0
    Radius (m)
    18.3
    Weight (g, per ski)
    1,750

  • 186 cm

    Tip (mm)
    118.0
    Waist (mm)
    90.0
    Tail (mm)
    116.0
    Radius (m)
    18.8
    Weight (g, per ski)
    1,800
Dimensions by length
LengthTip (mm)Waist (mm)Tail (mm)Radius (m)Weight (g, per ski)
161 cm114.090.0112.016.21,485
166 cm115.090.0113.016.71,550
171 cm115.090.0113.017.21,620
176 cm116.090.0114.017.71,670
181 cm117.090.0115.018.31,750
186 cm118.090.0116.018.81,800
ON3P Mango 90, top view, 176 cm: tip 116 mm, waist 90 mm, tail 114 mmTAIL 114 mmWAIST 90 mmTIP 116 mm

TAIL 114 mmWAIST 90 mmTIP 116 mm

“est.” marks a number the maker does not publish: ours. Where each number was read is under “Where these numbers come from” at the bottom.

What the model says

Carve radius, to scale

  • Sidecut radius: 17.7 m
  • Carve radius at 30° edge: 15.3 m
  • Carve radius at 45° edge: 12.5 m
All three drawn on one scale, from the same starting point. A smaller arc is a tighter turn.

Edge hold and float

  • Edge hold: 100%, Holds well
  • Float: 46%, Some float
Ticks mark where the word changes. For 90 kg at 176 cm: hold on groomed snow, float in powder. Model figures, not measurements.

The ON3P Mango 90 at 176 cm, worked out by the Edge Lab model for three skier weights.

  • 70 kg skier

    Carve radius at 30° / 45° / 60°
    15.3 / 12.5 / 8.9 m
    Edge hold, groomed
    Holds well (100%)
    Edge hold, ice
    On the limit (65%)
    Float, powder
    Some float (52%)

  • 90 kg skier

    Carve radius at 30° / 45° / 60°
    15.3 / 12.5 / 8.9 m
    Edge hold, groomed
    Holds well (100%)
    Edge hold, ice
    On the limit (62%)
    Float, powder
    Some float (46%)

  • 110 kg skier

    Carve radius at 30° / 45° / 60°
    15.3 / 12.5 / 8.9 m
    Edge hold, groomed
    Holds well (98%)
    Edge hold, ice
    Slides (59%)
    Float, powder
    Sinks (41%)
The ON3P Mango 90 at 176 cm, worked out by the Edge Lab model for three skier weights.
SkierCarve radius at 30° / 45° / 60° edgeEdge hold, groomedEdge hold, iceFloat, powder
70 kg15.3 / 12.5 / 8.9 mHolds well (100%)On the limit (65%)Some float (52%)
90 kg15.3 / 12.5 / 8.9 mHolds well (100%)On the limit (62%)Some float (46%)
110 kg15.3 / 12.5 / 8.9 mHolds well (98%)Slides (59%)Sinks (41%)

These are the model’s numbers, not measurements. Carve radius comes from the sidecut, so it does not change with weight; edge hold and float do. Flex and camber are our estimates (see “What the model uses” below).

By ability

The ON3P Mango 90 at 176 cm for a 90 kg skier on groomed snow. Reviewers are mostly experts, so read the left of each band for what most skiers get.

Edge hold

On firm snow, 176 cm
  • First-timer: slides (19%)
  • Beginner: slides (41%)
  • Intermediate: on the limit (70%), assumed level
  • Advanced: holds well (95%)
  • Expert: holds well (100%)
assumed intermediate: on the limit (70%)

Float

In soft snow
  • First-timer: sinks (35%)
  • Beginner: sinks (38%)
  • Intermediate: sinks (40%), assumed level
  • Advanced: sinks (43%)
  • Expert: some float (46%)
assumed intermediate: sinks (40%)

Ease

How forgiving it is
  • First-timer: hard (0%)
  • Beginner: manageable (60%)
  • Intermediate: easy (100%), assumed level
  • Advanced: easy (100%)
  • Expert: easy (92%)
assumed intermediate: easy (100%)

Our model, run with working assumptions about how each level skis (edge angle, speed, how much weight reaches the edge). Not measurements. The marked cell assumes an intermediate skier; compare with your own details to see your own level.

Who it suits

It suits

  • 90 kg, advanced, all over the mountain362 of 739 skis in the catalogue for this skier.
    • Carve radius about 15.3 m at 30° edge and 12.5 m at 45° (176 cm)
    • Strongest here: edge hold. Weakest: float.

It doesn’t suit

  • 70 kg, intermediate, on groomers403 of 739 skis in the catalogue for this skier.
    • Carve radius about 15.3 m at 30° edge and 12.5 m at 45° (176 cm)
    • Strongest here: edge hold. Weakest: float.
  • 110 kg, expert, off-piste in soft snow399 of 739 skis in the catalogue for this skier.

    What the model uses

    Physics inputs
    Flex underfoot187 N·m²est.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Camber height4.4 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tip rocker20.4 % of lengthest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tail rocker7.5 % of lengthest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tip rocker height12.5 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tail rocker height3.5 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Mount point offset-7.9 cmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)

    Made of

    Construction
    Core100% bamboo core
    CarbonCarbon stringers
    FibreglassTriaxial
    Base1.8mm Durasurf 4001 base
    Maker's descriptionEvery Mango 90 is built with our custom 2800 hybrid fiberglass/carbon, our proprietary composite weave that improves strength and durability while decreasing weight. Pair that with our trademark 100% bamboo core, full-length UHMW sidewalls, and the thickest bases and edges in skiing, and you have the most durable park ski we know how to build.

    Only what the maker prints. A field left out is one the maker does not state.

    What reviewers say

    No reviews indexed yet for this ski. We read Realskiers (opens in a new tab), Ski Canada Magazine (opens in a new tab) and SkiEssentials (opens in a new tab); check their sites directly.

    Compare with…

    Where to buy

    No shops to show for this ski yet. When we list one, it appears here with the reason it was picked.

    Where these numbers come fromon3pskis.com, edgelab.ski, read 11 Oct 2026· “est.” marks ours

    Numbers come from the maker’s own pages, with the date we read them. “est.” marks a number the maker does not publish: ours.
