Elan RIPSTICK TOUR 104 Flat 2024

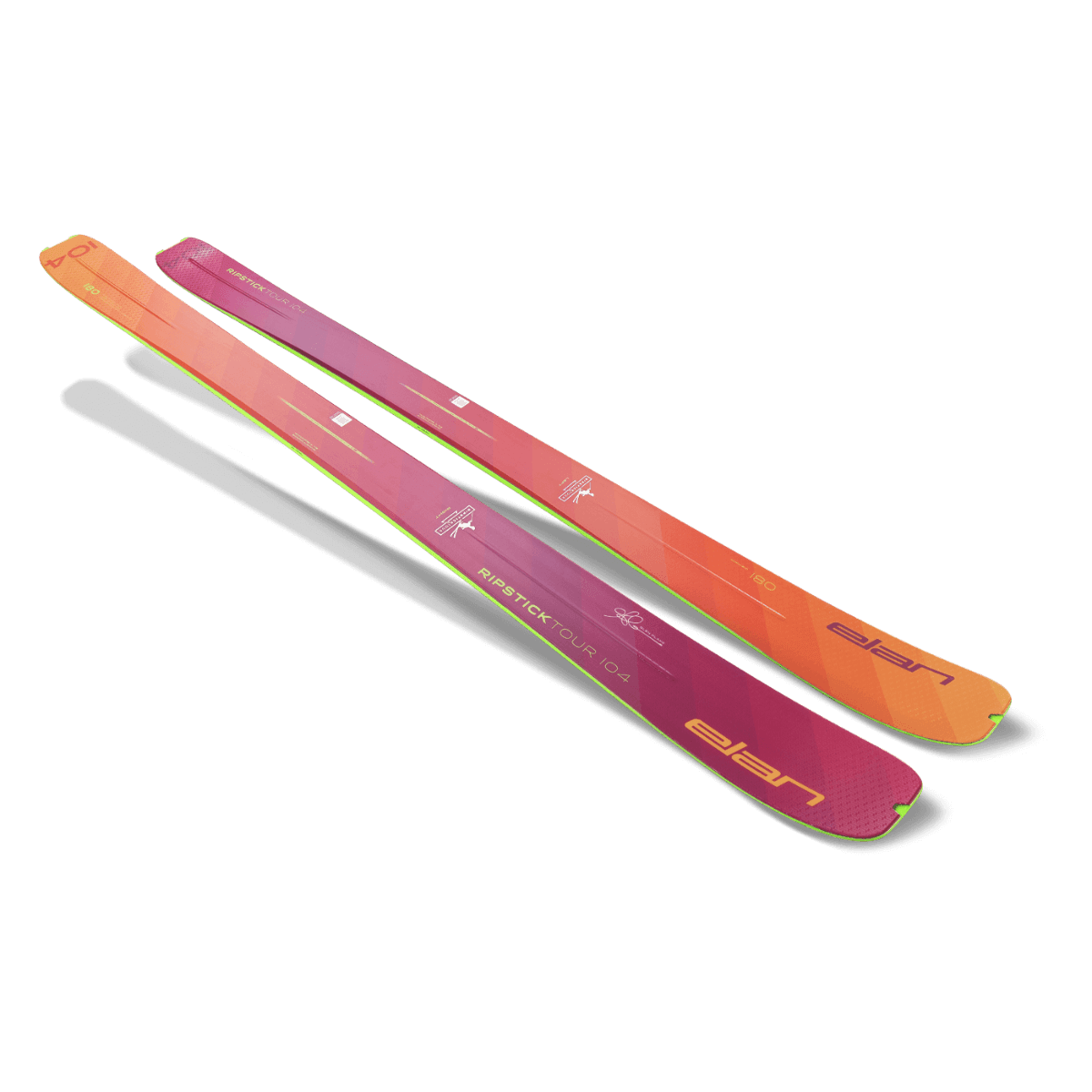

Elan RIPSTICK TOUR 104 Flat 2024 top sheet, image © Elan
image © Elan
Category
Freeride
Profile
not stated
Lengths
166 · 173 · 180 · 187 cm
Tip / waist / tail
129 / 104 / 122 mm
Radius
21.5 m at 173 cm
Weight
1,470 g per ski at 173 cm
Core
Laminated Woodcore
Metal
not stated
Carbon
Stringers
Sidewall
not stated
Base
High Speed Gliding Base
Intended ability
not stated
Compare for my setupGet more help

Lengths and published dimensions

  • 166 cm

    Tip (mm)
    129.0
    Waist (mm)
    104.0
    Tail (mm)
    122.0
    Radius (m)
    19.0
    Weight (g, per ski)
    1,400

  • 173 cm

    Tip (mm)
    129.0
    Waist (mm)
    104.0
    Tail (mm)
    122.0
    Radius (m)
    21.5
    Weight (g, per ski)
    1,470

  • 180 cm

    Tip (mm)
    129.0
    Waist (mm)
    104.0
    Tail (mm)
    122.0
    Radius (m)
    23.0
    Weight (g, per ski)
    1,540

  • 187 cm

    Tip (mm)
    129.0
    Waist (mm)
    104.0
    Tail (mm)
    122.0
    Radius (m)
    25.4
    Weight (g, per ski)
    1,610
Dimensions by length
LengthTip (mm)Waist (mm)Tail (mm)Radius (m)Weight (g, per ski)
166 cm129.0104.0122.019.01,400
173 cm129.0104.0122.021.51,470
180 cm129.0104.0122.023.01,540
187 cm129.0104.0122.025.41,610
Elan RIPSTICK TOUR 104 Flat, top view, 173 cm: tip 129 mm, waist 104 mm, tail 122 mmTAIL 122 mmWAIST 104 mmTIP 129 mm

“est.” marks a number the maker does not publish: ours. Where each number was read is under “Where these numbers come from” at the bottom.

What the model says

Carve radius, to scale

  • Sidecut radius: 21.5 m
  • Carve radius at 30° edge: 18.6 m
  • Carve radius at 45° edge: 15.2 m
All three drawn on one scale, from the same starting point. A smaller arc is a tighter turn.

Edge hold and float

  • Edge hold: 94%, Holds well
  • Float: 81%, Floats well
Ticks mark where the word changes. For 90 kg at 173 cm: hold on groomed snow, float in powder. Model figures, not measurements.

The Elan RIPSTICK TOUR 104 Flat at 173 cm, worked out by the Edge Lab model for three skier weights.

  • 70 kg skier

    Carve radius at 30° / 45° / 60°
    18.6 / 15.2 / 10.8 m
    Edge hold, groomed
    Holds well (97%)
    Edge hold, ice
    On the limit (62%)
    Float, powder
    Floats well (89%)

  • 90 kg skier

    Carve radius at 30° / 45° / 60°
    18.6 / 15.2 / 10.8 m
    Edge hold, groomed
    Holds well (94%)
    Edge hold, ice
    Slides (58%)
    Float, powder
    Floats well (81%)

  • 110 kg skier

    Carve radius at 30° / 45° / 60°
    18.6 / 15.2 / 10.8 m
    Edge hold, groomed
    Holds well (92%)
    Edge hold, ice
    Slides (54%)
    Float, powder
    Floats well (72%)
The Elan RIPSTICK TOUR 104 Flat at 173 cm, worked out by the Edge Lab model for three skier weights.
SkierCarve radius at 30° / 45° / 60° edgeEdge hold, groomedEdge hold, iceFloat, powder
70 kg18.6 / 15.2 / 10.8 mHolds well (97%)On the limit (62%)Floats well (89%)
90 kg18.6 / 15.2 / 10.8 mHolds well (94%)Slides (58%)Floats well (81%)
110 kg18.6 / 15.2 / 10.8 mHolds well (92%)Slides (54%)Floats well (72%)

These are the model’s numbers, not measurements. Carve radius comes from the sidecut, so it does not change with weight; edge hold and float do. Flex and camber are our estimates (see “What the model uses” below).

By ability

The Elan RIPSTICK TOUR 104 Flat at 173 cm for a 90 kg skier on groomed snow. Reviewers are mostly experts, so read the left of each band for what most skiers get.

Edge hold

On firm snow, 173 cm
  • First-timer: slides (18%)
  • Beginner: slides (38%)
  • Intermediate: on the limit (66%), assumed level
  • Advanced: holds well (89%)
  • Expert: holds well (94%)
assumed intermediate: on the limit (66%)

Float

In soft snow
  • First-timer: some float (62%)
  • Beginner: some float (66%)
  • Intermediate: floats well (70%), assumed level
  • Advanced: floats well (75%)
  • Expert: floats well (81%)
assumed intermediate: floats well (70%)

Ease

How forgiving it is
  • First-timer: hard (23%)
  • Beginner: easy (85%)
  • Intermediate: easy (100%), assumed level
  • Advanced: easy (92%)
  • Expert: easy (81%)
assumed intermediate: easy (100%)

Our model, run with working assumptions about how each level skis (edge angle, speed, how much weight reaches the edge). Not measurements. The marked cell assumes an intermediate skier; compare with your own details to see your own level.

Who it suits

It suits

  • 90 kg, advanced, all over the mountain117 of 547 skis in the catalogue for this skier.
    • Carve radius about 18.6 m at 30° edge and 15.2 m at 45° (173 cm)
    • Strongest here: edge hold. Even its weakest part, float, is solid.
  • 110 kg, expert, off-piste in soft snow77 of 547 skis in the catalogue for this skier.
    • Strongest here: turn shape. Even its weakest part, float, is solid.

It doesn’t suit

  • 70 kg, intermediate, on groomers464 of 547 skis in the catalogue for this skier.
    • Carve radius about 18.6 m at 30° edge and 15.2 m at 45° (173 cm)
    • Strongest here: edge hold. Weakest: turn shape.

What the model uses

Physics inputs
Flex underfoot150 N·m²est.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
Camber height3.0 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
Tip rocker26.0 % of lengthest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
Tail rocker15.0 % of lengthest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
Tip rocker height20.0 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
Tail rocker height10.0 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
Mount point offset-6.0 cmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)

Made of

Construction
CoreLaminated Woodcore
CarbonCarbon stringers
BaseHigh Speed Gliding Base
Maker's description360° Sidewall, Laminated Woodcore, Carbon, Fiberglass

Only what the maker prints. A field left out is one the maker does not state.

What reviewers say

No published reviews of this ski yet.

Compare with…

Where to buy

No shops to show for this ski yet. When we list one, it appears here with the reason it was picked.

Where these numbers come fromelansports.com, edgelab.ski, read 9 Oct 2026· “est.” marks ours

Numbers come from the maker’s own pages, with the date we read them. “est.” marks a number the maker does not publish: ours.
