ON3P

Powder · Rocker, camber, rocker

ON3P MANGO 114 2027

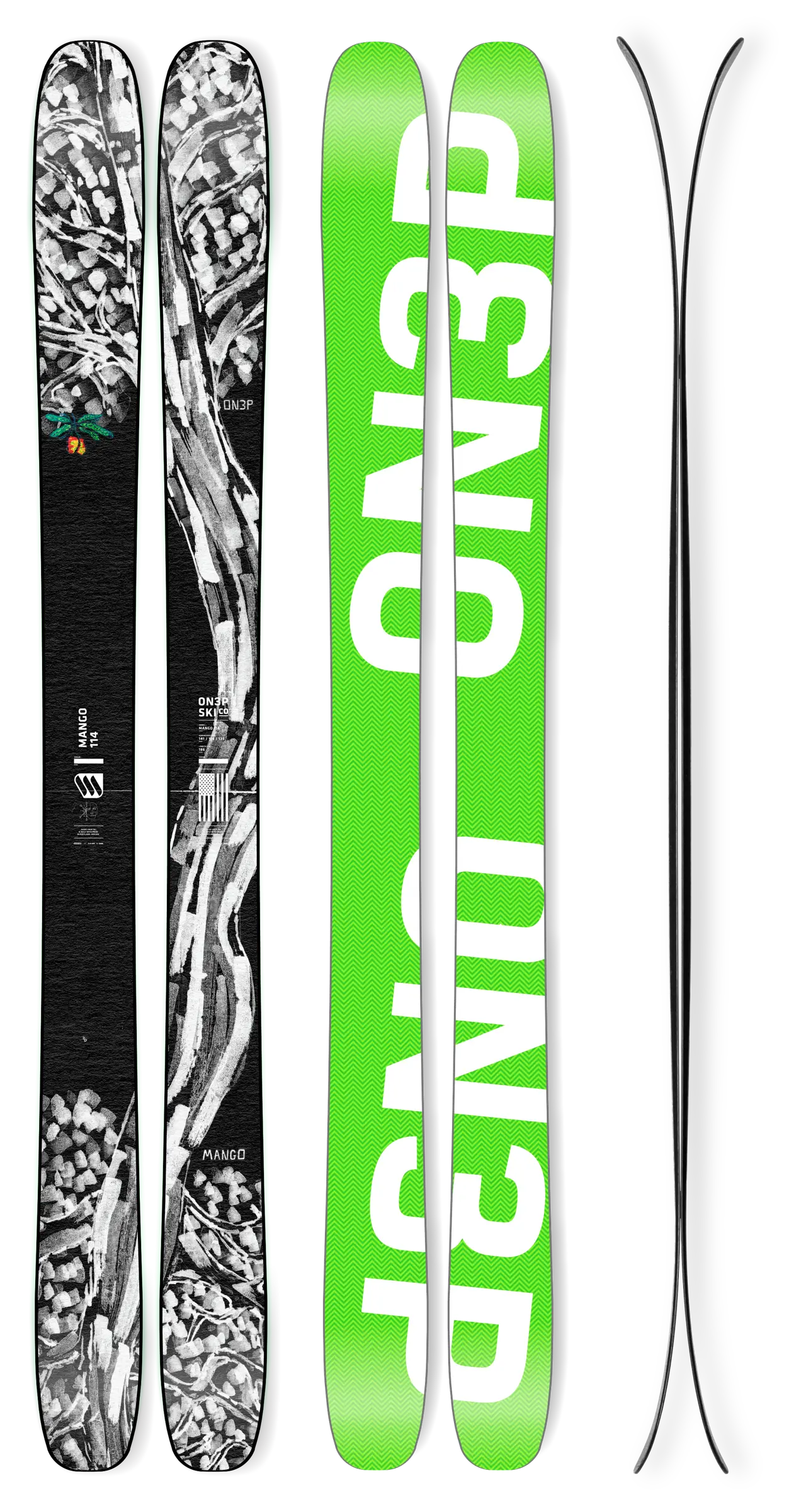

ON3P MANGO 114 2027 top sheet, image © ON3P
image © ON3P
Category
Powder
Profile
Rocker, camber, rocker
Lengths
176 · 181 · 186 cm
Tip / waist / tail
139 / 114 / 133 mm
Radius
19.8 m at 176 cm
Weight
2,045 g per ski at 176 cm
Core
100% bamboo core
Metal
not stated
Carbon
Stringers
Sidewall
not stated
Base
1.8mm Durasurf 4001 base
Intended ability
not stated
Compare for my setupGet more help

Lengths and published dimensions

  • 176 cm

    Tip (mm)
    139.0
    Waist (mm)
    114.0
    Tail (mm)
    133.0
    Radius (m)
    19.8
    Weight (g, per ski)
    2,045

  • 181 cm

    Tip (mm)
    140.0
    Waist (mm)
    114.0
    Tail (mm)
    134.0
    Radius (m)
    20.5
    Weight (g, per ski)
    2,140

  • 186 cm

    Tip (mm)
    141.0
    Waist (mm)
    114.0
    Tail (mm)
    135.0
    Radius (m)
    21.2
    Weight (g, per ski)
    2,225
Dimensions by length
LengthTip (mm)Waist (mm)Tail (mm)Radius (m)Weight (g, per ski)
176 cm139.0114.0133.019.82,045
181 cm140.0114.0134.020.52,140
186 cm141.0114.0135.021.22,225
ON3P MANGO 114, top view, 176 cm: tip 139 mm, waist 114 mm, tail 133 mmTAIL 133 mmWAIST 114 mmTIP 139 mm

TAIL 133 mmWAIST 114 mmTIP 139 mm

“est.” marks a number the maker does not publish: ours. Where each number was read is under “Where these numbers come from” at the bottom.

What the model says

Carve radius, to scale

  • Sidecut radius: 19.8 m
  • Carve radius at 30° edge: 17.1 m
  • Carve radius at 45° edge: 14 m
All three drawn on one scale, from the same starting point. A smaller arc is a tighter turn.

Edge hold and float

  • Edge hold: 84%, On the limit
  • Float: 100%, Floats well
Ticks mark where the word changes. For 90 kg at 176 cm: hold on groomed snow, float in powder. Model figures, not measurements.

The ON3P MANGO 114 at 176 cm, worked out by the Edge Lab model for three skier weights.

  • 70 kg skier

    Carve radius at 30° / 45° / 60°
    17.1 / 14 / 9.9 m
    Edge hold, groomed
    Holds well (87%)
    Edge hold, ice
    Slides (51%)
    Float, powder
    Floats well (100%)

  • 90 kg skier

    Carve radius at 30° / 45° / 60°
    17.1 / 14 / 9.9 m
    Edge hold, groomed
    On the limit (84%)
    Edge hold, ice
    Slides (43%)
    Float, powder
    Floats well (100%)

  • 110 kg skier

    Carve radius at 30° / 45° / 60°
    17.1 / 14 / 9.9 m
    Edge hold, groomed
    On the limit (81%)
    Edge hold, ice
    Slides (41%)
    Float, powder
    Floats well (100%)
The ON3P MANGO 114 at 176 cm, worked out by the Edge Lab model for three skier weights.
SkierCarve radius at 30° / 45° / 60° edgeEdge hold, groomedEdge hold, iceFloat, powder
70 kg17.1 / 14 / 9.9 mHolds well (87%)Slides (51%)Floats well (100%)
90 kg17.1 / 14 / 9.9 mOn the limit (84%)Slides (43%)Floats well (100%)
110 kg17.1 / 14 / 9.9 mOn the limit (81%)Slides (41%)Floats well (100%)

These are the model’s numbers, not measurements. Carve radius comes from the sidecut, so it does not change with weight; edge hold and float do. Flex and camber are our estimates (see “What the model uses” below).

By ability

The ON3P MANGO 114 at 176 cm for a 90 kg skier on groomed snow. Reviewers are mostly experts, so read the left of each band for what most skiers get.

Edge hold

On firm snow, 176 cm
  • First-timer: slides (16%)
  • Beginner: slides (34%)
  • Intermediate: slides (59%), assumed level
  • Advanced: on the limit (80%)
  • Expert: on the limit (84%)
assumed intermediate: slides (59%)

Float

In soft snow
  • First-timer: floats well (77%)
  • Beginner: floats well (82%)
  • Intermediate: floats well (86%), assumed level
  • Advanced: floats well (93%)
  • Expert: floats well (100%)
assumed intermediate: floats well (86%)

Ease

How forgiving it is
  • First-timer: manageable (69%)
  • Beginner: easy (100%)
  • Intermediate: easy (95%), assumed level
  • Advanced: manageable (75%)
  • Expert: manageable (66%)
assumed intermediate: easy (95%)

Our model, run with working assumptions about how each level skis (edge angle, speed, how much weight reaches the edge). Not measurements. The marked cell assumes an intermediate skier; compare with your own details to see your own level.

Who it suits

It suits

  • 90 kg, advanced, all over the mountain17 of 739 skis in the catalogue for this skier.
    • Carve radius about 17.1 m at 30° edge and 14 m at 45° (176 cm)
    • Strongest here: float. Even its weakest part, edge hold, is solid.
  • 110 kg, expert, off-piste in soft snow7 of 739 skis in the catalogue for this skier.

    It doesn’t suit

    • 70 kg, intermediate, on groomers593 of 739 skis in the catalogue for this skier.
      • Carve radius about 17.1 m at 30° edge and 14 m at 45° (176 cm)
      • Strongest here: float. Even its weakest part, turn shape, is solid.

    What the model uses

    Physics inputs
    Flex underfoot121 N·m²est.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Camber height0.5 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tip rocker36.0 % of lengthest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tail rocker27.5 % of lengthest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tip rocker height30.0 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tail rocker height16.7 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Mount point offset-4.3 cmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)

    Made of

    Construction
    Core100% bamboo core
    CarbonCarbon stringers
    FibreglassTriaxial
    Base1.8mm Durasurf 4001 base
    Maker's descriptionEvery Mango 114 is built with our custom 2800 hybrid fiberglass/carbon, our proprietary composite weave that improves strength and durability while decreasing weight. Pair that with our trademark 100% bamboo core, full-length UHMW sidewalls, and the thickest bases and edges in skiing, and you have the most durable freestyle powder ski we know how to build.

    Only what the maker prints. A field left out is one the maker does not state.

    What reviewers say

    No reviews indexed yet for this ski. We read Realskiers (opens in a new tab), Ski Canada Magazine (opens in a new tab) and SkiEssentials (opens in a new tab); check their sites directly.

    Compare with…

    Where to buy

    No shops to show for this ski yet. When we list one, it appears here with the reason it was picked.

    Where these numbers come fromon3pskis.com, edgelab.ski, read 11 Oct 2026· “est.” marks ours

    Numbers come from the maker’s own pages, with the date we read them. “est.” marks a number the maker does not publish: ours.
