Kästle

Carving

Kästle AerialX Summer 2024

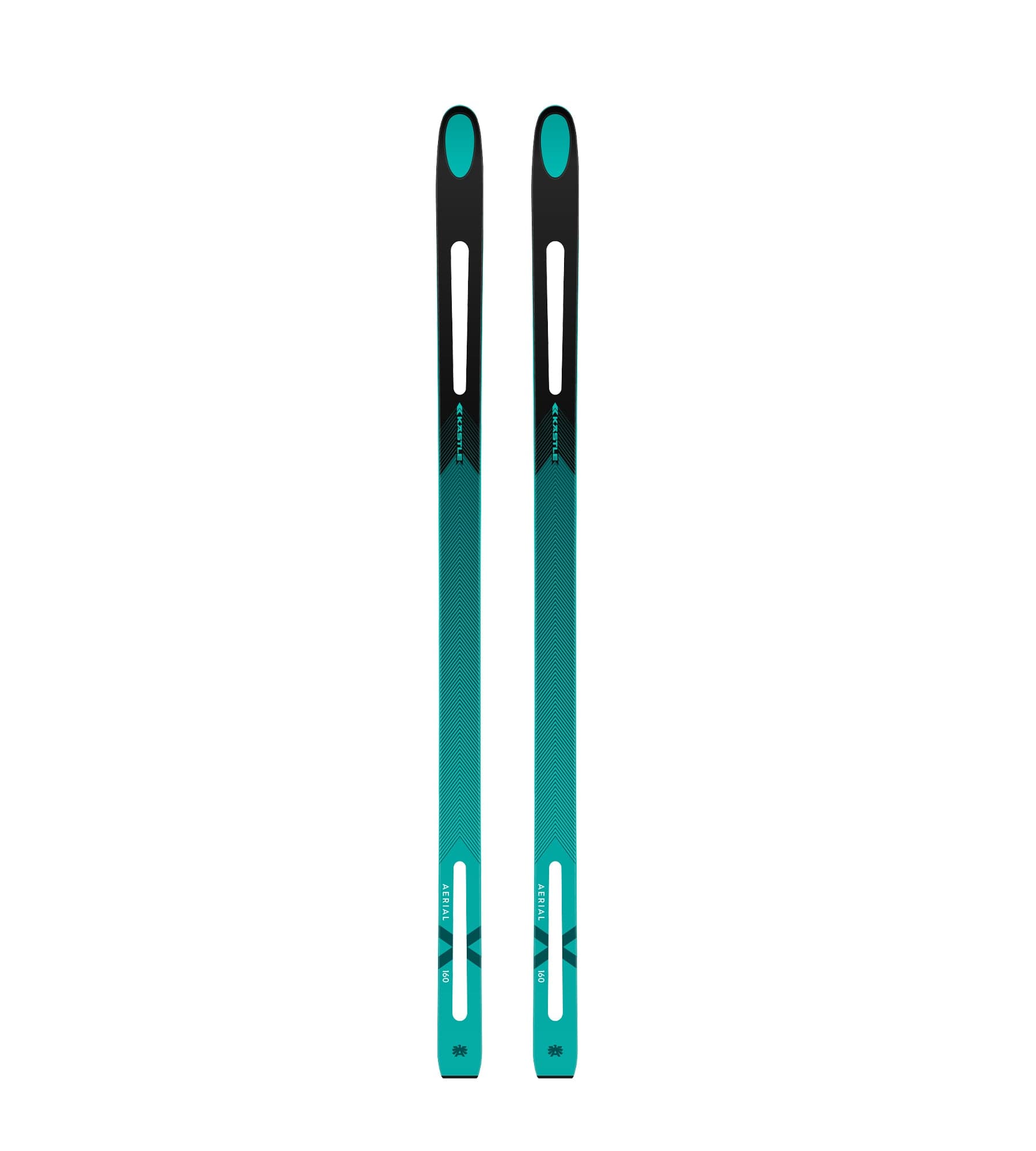

Kästle AerialX Summer 2024 top sheet, image © Kästle
image © Kästle
Category
Carving
Profile
not stated
Lengths
150 · 160 cm
Tip / waist / tail
78est. / 64est. / 73est. mm
Radius
37.9 mest. at 160 cm
Weight
not stated
Core
not stated
Metal
not stated
Carbon
not stated
Sidewall
not stated
Base
not stated
Intended ability
not stated
Compare for my setupGet more help

Lengths and published dimensions

  • 150 cm

    Tip (mm)
    78.0
    Waist (mm)
    64.0
    Tail (mm)
    73.0
    Radius (m)
    33.3
    Weight (g, per ski)
    990

  • 160 cm

    Tip (mm)
    78.0est.
    Waist (mm)
    64.0est.
    Tail (mm)
    73.0est.
    Radius (m)
    37.9est.
    Weight (g, per ski)
    not published
Dimensions by length
LengthTip (mm)Waist (mm)Tail (mm)Radius (m)Weight (g, per ski)
150 cm78.064.073.033.3990
160 cm78.0est.64.0est.73.0est.37.9est.not published
Kästle AerialX Summer, top view, 160 cm: tip 78 mm (est.), waist 64 mm (est.), tail 73 mm (est.)TAIL 73 mm (est.)WAIST 64 mm (est.)TIP 78 mm (est.)

“est.” marks a number the maker does not publish: ours. Where each number was read is under “Where these numbers come from” at the bottom.

What the model says

Carve radius, to scale

  • Sidecut radius: 37.888 m (est.)
  • Carve radius at 30° edge: 32.8 m
  • Carve radius at 45° edge: 26.8 m
All three drawn on one scale, from the same starting point. A smaller arc is a tighter turn.

Edge hold and float

  • Edge hold: 100%, Holds well
  • Float: 11%, Sinks
Ticks mark where the word changes. For 90 kg at 160 cm: hold on groomed snow, float in powder. Model figures, not measurements.

The Kästle AerialX Summer at 160 cm, worked out by the Edge Lab model for three skier weights.

  • 70 kg skier

    Carve radius at 30° / 45° / 60°
    32.8 / 26.8 / 18.9 m
    Edge hold, groomed
    Holds well (100%)
    Edge hold, ice
    On the limit (78%)
    Float, powder
    Sinks (11%)

  • 90 kg skier

    Carve radius at 30° / 45° / 60°
    32.8 / 26.8 / 18.9 m
    Edge hold, groomed
    Holds well (100%)
    Edge hold, ice
    On the limit (76%)
    Float, powder
    Sinks (11%)

  • 110 kg skier

    Carve radius at 30° / 45° / 60°
    32.8 / 26.8 / 18.9 m
    Edge hold, groomed
    Holds well (100%)
    Edge hold, ice
    On the limit (74%)
    Float, powder
    Sinks (11%)
The Kästle AerialX Summer at 160 cm, worked out by the Edge Lab model for three skier weights.
SkierCarve radius at 30° / 45° / 60° edgeEdge hold, groomedEdge hold, iceFloat, powder
70 kg32.8 / 26.8 / 18.9 mHolds well (100%)On the limit (78%)Sinks (11%)
90 kg32.8 / 26.8 / 18.9 mHolds well (100%)On the limit (76%)Sinks (11%)
110 kg32.8 / 26.8 / 18.9 mHolds well (100%)On the limit (74%)Sinks (11%)

These are the model’s numbers, not measurements. Carve radius comes from the sidecut, so it does not change with weight; edge hold and float do. Flex and camber are our estimates (see “What the model uses” below).

By ability

The Kästle AerialX Summer at 160 cm for a 90 kg skier on groomed snow. Reviewers are mostly experts, so read the left of each band for what most skiers get.

Edge hold

On firm snow, 160 cm
  • First-timer: slides (19%)
  • Beginner: slides (41%)
  • Intermediate: on the limit (70%), assumed level
  • Advanced: holds well (95%)
  • Expert: holds well (100%)
assumed intermediate: on the limit (70%)

Float

In soft snow
  • First-timer: sinks (8%)
  • Beginner: sinks (9%)
  • Intermediate: sinks (9%), assumed level
  • Advanced: sinks (10%)
  • Expert: sinks (11%)
assumed intermediate: sinks (9%)

Ease

How forgiving it is
  • First-timer: hard (0%)
  • Beginner: hard (0%)
  • Intermediate: hard (18%), assumed level
  • Advanced: hard (29%)
  • Expert: manageable (63%)
assumed intermediate: hard (18%)

Our model, run with working assumptions about how each level skis (edge angle, speed, how much weight reaches the edge). Not measurements. The marked cell assumes an intermediate skier; compare with your own details to see your own level.

Who it suits

It suits

None of the three skiers we check puts it in the top half of the catalogue.

It doesn’t suit

  • 70 kg, intermediate, on groomers544 of 547 skis in the catalogue for this skier.
    • Carve radius about 32.8 m at 30° edge and 26.8 m at 45° (160 cm)
    • Strongest here: edge hold. Weakest: turn shape.
  • 90 kg, advanced, all over the mountain546 of 547 skis in the catalogue for this skier.
    • 110 kg, expert, off-piste in soft snow545 of 547 skis in the catalogue for this skier.
      • Strongest here: edge hold. Weakest: float.

    What the model uses

    Physics inputs
    Flex underfoot230 N·m²est.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Camber height7.0 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tip rocker12.0 % of lengthest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tail rocker6.0 % of lengthest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tip rocker height4.0 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tail rocker height0.0 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Mount point offset-7.0 cmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)

    What reviewers say

    No published reviews of this ski yet.

    Compare with…

    Where to buy

    No shops to show for this ski yet. When we list one, it appears here with the reason it was picked.

    Where these numbers come fromkaestle.com, edgelab.ski, read 9 Oct 2026· “est.” marks ours

    Numbers come from the maker’s own pages, with the date we read them. “est.” marks a number the maker does not publish: ours.
