Kästle

Carving · Full camber

Kästle MX74 2024

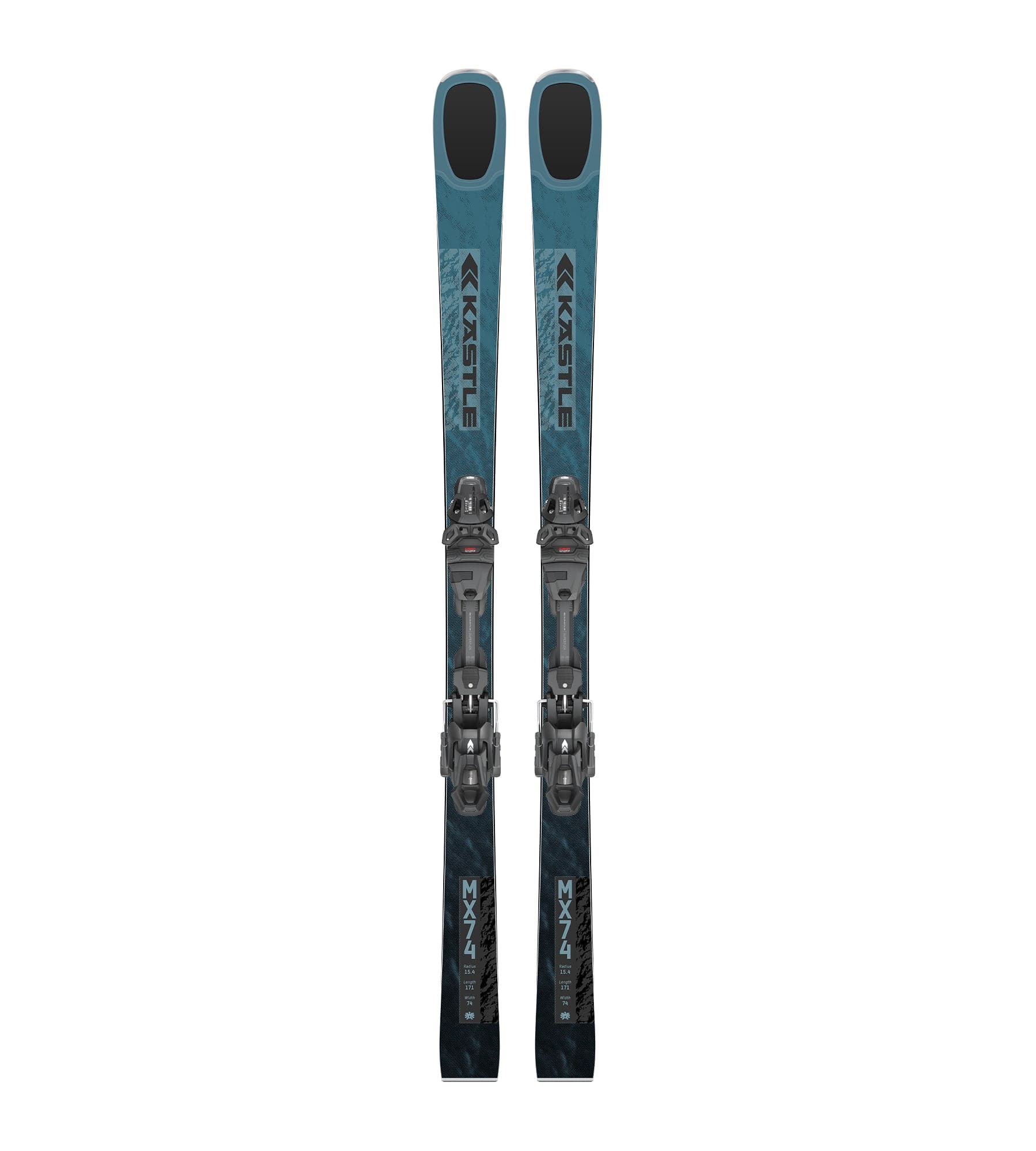

Kästle MX74 2024 top sheet, image © Kästle
image © Kästle
Category
Carving
Profile
Full camber
Lengths
150 · 157 · 164 · 171 · 178 cm
Tip / waist / tail
123est. / 74est. / 103est. mm
Radius
15.9 mest. at 178 cm
Weight
not stated
Core
Infini Core AMTN (Poplar Beech)
Metal
2 metal sheets
Carbon
not stated
Sidewall
not stated
Base
not stated
Intended ability
not stated
Compare for my setupGet more help

Lengths and published dimensions

  • 150 cm

    Tip (mm)
    123.0
    Waist (mm)
    74.0
    Tail (mm)
    103.0
    Radius (m)
    11.3
    Weight (g, per ski)
    1,535

  • 157 cm

    Tip (mm)
    123.0est.
    Waist (mm)
    74.0est.
    Tail (mm)
    103.0est.
    Radius (m)
    12.4est.
    Weight (g, per ski)
    not published

  • 164 cm

    Tip (mm)
    123.0est.
    Waist (mm)
    74.0est.
    Tail (mm)
    103.0est.
    Radius (m)
    13.5est.
    Weight (g, per ski)
    not published

  • 171 cm

    Tip (mm)
    123.0est.
    Waist (mm)
    74.0est.
    Tail (mm)
    103.0est.
    Radius (m)
    14.7est.
    Weight (g, per ski)
    not published

  • 178 cm

    Tip (mm)
    123.0est.
    Waist (mm)
    74.0est.
    Tail (mm)
    103.0est.
    Radius (m)
    15.9est.
    Weight (g, per ski)
    not published
Dimensions by length
LengthTip (mm)Waist (mm)Tail (mm)Radius (m)Weight (g, per ski)
150 cm123.074.0103.011.31,535
157 cm123.0est.74.0est.103.0est.12.4est.not published
164 cm123.0est.74.0est.103.0est.13.5est.not published
171 cm123.0est.74.0est.103.0est.14.7est.not published
178 cm123.0est.74.0est.103.0est.15.9est.not published
Kästle MX74, top view, 178 cm: tip 123 mm (est.), waist 74 mm (est.), tail 103 mm (est.)TAIL 103 mm (est.)WAIST 74 mm (est.)TIP 123 mm (est.)

“est.” marks a number the maker does not publish: ours. Where each number was read is under “Where these numbers come from” at the bottom.

What the model says

Carve radius, to scale

  • Sidecut radius: 15.912408888888892 m (est.)
  • Carve radius at 30° edge: 13.8 m
  • Carve radius at 45° edge: 11.3 m
All three drawn on one scale, from the same starting point. A smaller arc is a tighter turn.

Edge hold and float

  • Edge hold: 100%, Holds well
  • Float: 11%, Sinks
Ticks mark where the word changes. For 90 kg at 178 cm: hold on groomed snow, float in powder. Model figures, not measurements.

The Kästle MX74 at 178 cm, worked out by the Edge Lab model for three skier weights.

  • 70 kg skier

    Carve radius at 30° / 45° / 60°
    13.8 / 11.3 / 8 m
    Edge hold, groomed
    Holds well (100%)
    Edge hold, ice
    On the limit (73%)
    Float, powder
    Sinks (11%)

  • 90 kg skier

    Carve radius at 30° / 45° / 60°
    13.8 / 11.3 / 8 m
    Edge hold, groomed
    Holds well (100%)
    Edge hold, ice
    On the limit (69%)
    Float, powder
    Sinks (11%)

  • 110 kg skier

    Carve radius at 30° / 45° / 60°
    13.8 / 11.3 / 8 m
    Edge hold, groomed
    Holds well (100%)
    Edge hold, ice
    On the limit (67%)
    Float, powder
    Sinks (11%)
The Kästle MX74 at 178 cm, worked out by the Edge Lab model for three skier weights.
SkierCarve radius at 30° / 45° / 60° edgeEdge hold, groomedEdge hold, iceFloat, powder
70 kg13.8 / 11.3 / 8 mHolds well (100%)On the limit (73%)Sinks (11%)
90 kg13.8 / 11.3 / 8 mHolds well (100%)On the limit (69%)Sinks (11%)
110 kg13.8 / 11.3 / 8 mHolds well (100%)On the limit (67%)Sinks (11%)

These are the model’s numbers, not measurements. Carve radius comes from the sidecut, so it does not change with weight; edge hold and float do. Flex and camber are our estimates (see “What the model uses” below).

By ability

The Kästle MX74 at 178 cm for a 90 kg skier on groomed snow. Reviewers are mostly experts, so read the left of each band for what most skiers get.

Edge hold

On firm snow, 178 cm
  • First-timer: slides (19%)
  • Beginner: slides (41%)
  • Intermediate: on the limit (70%), assumed level
  • Advanced: holds well (95%)
  • Expert: holds well (100%)
assumed intermediate: on the limit (70%)

Float

In soft snow
  • First-timer: sinks (8%)
  • Beginner: sinks (9%)
  • Intermediate: sinks (9%), assumed level
  • Advanced: sinks (10%)
  • Expert: sinks (11%)
assumed intermediate: sinks (9%)

Ease

How forgiving it is
  • First-timer: hard (0%)
  • Beginner: hard (19%)
  • Intermediate: manageable (73%), assumed level
  • Advanced: easy (100%)
  • Expert: easy (100%)
assumed intermediate: manageable (73%)

Our model, run with working assumptions about how each level skis (edge angle, speed, how much weight reaches the edge). Not measurements. The marked cell assumes an intermediate skier; compare with your own details to see your own level.

Who it suits

It suits

  • 70 kg, intermediate, on groomers263 of 547 skis in the catalogue for this skier.
    • Carve radius about 13.8 m at 30° edge and 11.3 m at 45° (178 cm)
    • Strongest here: edge hold. Weakest: float.

It doesn’t suit

  • 90 kg, advanced, all over the mountain465 of 547 skis in the catalogue for this skier.
    • Carve radius about 13.8 m at 30° edge and 11.3 m at 45° (178 cm)
    • Strongest here: edge hold. Weakest: float.
  • 110 kg, expert, off-piste in soft snow471 of 547 skis in the catalogue for this skier.

    What the model uses

    Physics inputs
    Flex underfoot244 N·m²est.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Camber height6.7 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tip rocker12.9 % of lengthest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tail rocker6.1 % of lengthest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tip rocker height4.9 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Tail rocker height0.4 mmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)
    Mount point offset-7.1 cmest.Edge Lab archetype default (interpolated by waist) (read 9 Oct 2026)

    Made of

    Construction
    CoreInfini Core AMTN (Poplar Beech)
    Metal2 metal layers
    Maker's descriptionInfini Core AMTN (Poplar Beech) | Double Titanal, Full Race Sidewall

    Only what the maker prints. A field left out is one the maker does not state.

    What reviewers say

    No published reviews of this ski yet.

    Compare with…

    Where to buy

    No shops to show for this ski yet. When we list one, it appears here with the reason it was picked.

    Where these numbers come fromkaestle.com, edgelab.ski, read 9 Oct 2026· “est.” marks ours

    Numbers come from the maker’s own pages, with the date we read them. “est.” marks a number the maker does not publish: ours.
